Manual vertical spraying masts LM-01 and LM-02

Basic information

A series of manual vertical masts is designed for efficient and homogeneous spraying of greenhouse high growing vegetables. Compared to the manual spraying method with usual nozzles, here we obtain an increase in spraying efficiency, an improvement in the quality and uniformity of plant cover, while reducing the consumption of chemicals.

The offer includes 2 models of masts:
Standard model LM-01
Pro model LM-02

1. Model Standard LM-01
Professional spraying of greenhouse plants, taking into account high precision and efficiency of spraying while maintaining high efficiency and economy in working time and chemical consumption.

The equipment includes 1 mast with nozzles for main spraying (spraying takes place simultaneously on the right and left side of the plant row). Each nozzle can be adjusted within a certain range of -15 degrees, 0 degrees, +15 degrees and each nozzle can be turned on or off from the spraying. This is a very important functionality.
Standard equipment includes an anti-drip valve, 2 types of nozzles (double flat fan nozzle and full cone nozzle).

Optionally, you can use the so-called extension for direct spraying under plant leaves.

2. Model PRO LM-02
Advanced, fully professional spraying of greenhouse plants, taking into account high precision and efficiency of spraying while maintaining high efficiency and economy in working time and chemical consumption.

Typical equipment includes 2 independent masts:
a) 1 mast with main spraying nozzles for main spraying (sides) of row with plants
b) 1 mast with nozzles for additional spraying of beginnings / ends of plant gutters and walls.

Each nozzle can be adjusted within a certain range of -15 degrees, 0 degrees, +15 degrees and each nozzle can be turned on or off from the spraying. This is a very important functionality.
Standard equipment includes an anti-drip valve, 2 types of nozzles (double flat fan nozzle and full cone nozzle).

Optionally, you can use the so-called extension for direct spraying under plant leaves.

Directing the liquid stream for spraying plants is carried out by means of a distributor additionally equipped with a filter, pressure regulator and manometer.

Masts structure is entirely made of acid-resistant steel. The height-adjustable mast bracket allows for optimal adjustment of the spray height (range). Individually adjustable nozzles can be set in three positions. Each of them can be opened and closed separately.
The nozzles are made of a material resistant to chemicals, with ceramic inserts ensuring their durability.

For optimal results, we recommend the following parameters of the feed pump: pump capacity 36 l at 50 bar

Standard equipment of LM-02 mast is:

• manometer
• pressure regulator
• 3-way valve
• filter
• trigger gun
• mast with height adjustment
• adjustable axles

The system of portable sprayers can be completed with wheels with a rim for heating pipe systems, solid rubber wheels or pneumatic wheels for use in open spaces (field crops). The track width can be easily adjusted to suit for  different heating pipe systems (applies to rail pipe systems).

Possible execution on various wheels according to customer needs:

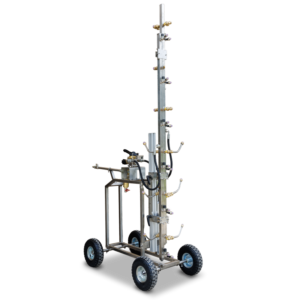

1. Solid pneumatic or foam wheels for flat ground surfaces

2. Hard polyurethane wheels (non-marking) for concrete surfaces

3. Plastic rolling hubs for driving on heating pipes
