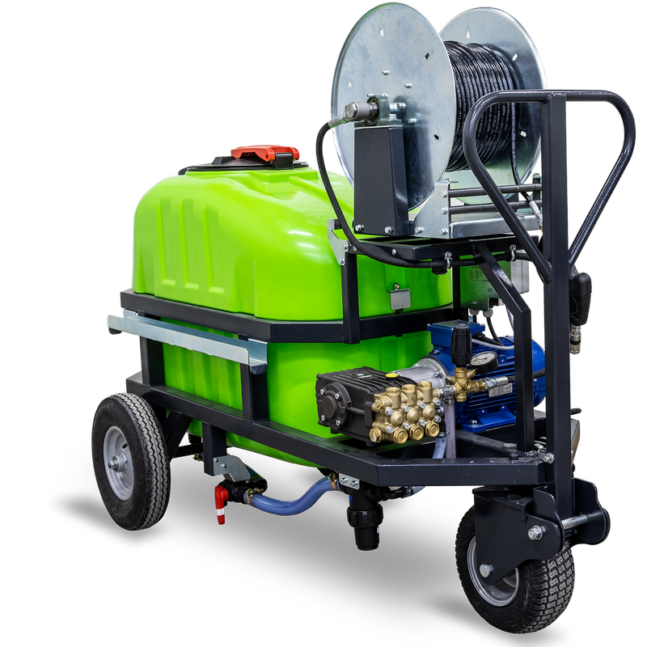

PS-300 Greenhouse high-pressure spraying trolley

Basic information and specification

PS-300 is an advanced professional high-pressure spraying cart with a 300l tank designed for small, and medium-sized greenhouses. PS-300 can be used in indoor crop protection and treatment.
PS-300 sprayer is available with an electric motor in standard, and petrol engine upon request.

Main features are:

• 4kW three-phase electric motor connected to the pump by a coupling and a vibration damper,
• time counter for calculating total work time of equipment
• efficient 3-way valve with smooth pressure regulation, pressure gauge and by-pass function,
• protection against “bubble” of liquid returning to the tank through a by-pass,
• solid hose drum with a 180-degree rotation function (-90 / 0 / + 90) with a lock,
• drum is equipped with a blockade that prevents the hose from unrolling itself,
• rolls supporting the guiding of the hose during unwinding and winding up,
• durable and bearing wheels have a positive effect on lightness during transport inside the greenhouse,
• steel frame protected against corrosion
• 2 pumps to choose from: 150 bar – 15 l / min and 100 bar – 21 l / min,

Tank

• capacity of 300 l.
• tank inlet with a filter,
• tank cover with a vent valve,
• very smooth inner walls of the tank facilitate cleaning and keeping it clean,
• an additional clean water tank, e.g. for washing hands,
• function of mixing the working liquid inside the tank,
• valve for emptying residual working liquid / rinse
